Custom Your Own Water Filter Cartridge

Apart from the replacement water filter element (most of the high flow water filter element/cartridge), we can supply various other industrial water filter cartridges for industrial and drinking water filtration. They have more flexible and can be customized for special applications and environments. You can review the following information and supply the necessary information and we will recommend the perfect products for you.

Using condition/environment
Filter element materials
Filtration fineness
Cartridge/element sizes

Several different types of water filter cartridges on white background.

-	String Wound Filter Cartridge	PP Melt-Blown Filter Cartridge	Microporous Folding Filter Cartridge	SS Pleated Filter Element
img:	String Wound Filter Cartridge	PP Melt-Blown Filter Cartridge	Microporous Folding Filter Cartridge	SS Pleated Filter Element
img String Wound Filter Cartridge PP Melt-Blown Filter Cartridge Microporous Folding Filter Cartridge SS Pleated Filter Element
Material String Wound Filter Cartridge Textile fabric string (polypropylene fiber, absorbent cotton, glass fiber) PP Melt-Blown Filter Cartridge Polypropylene fibers Microporous Folding Filter Cartridge PP/PTFE/PES/PVDF/Nylon 6 SS Pleated Filter Element Stainless steel wires
Material	Textile fabric string (polypropylene fiber, absorbent cotton, glass fiber)	Polypropylene fibers	PP/PTFE/PES/PVDF/Nylon 6	Stainless steel wires
Construction String Wound Filter Cartridge Preciously winding onto the multi-hole axles PP Melt-Blown Filter Cartridge Thermally self-bonded micro-fiber construction Microporous Folding Filter Cartridge PP fiber membrane, NL, PES, PTEF, PVDF, and non-woven (screen) support layers folded SS Pleated Filter Element Stainless steel wire cloth strands woven in various mesh patterns to form absolute as well as nominal filtration ratings
Construction	Preciously winding onto the multi-hole axles	Thermally self-bonded micro-fiber construction	PP fiber membrane, NL, PES, PTEF, PVDF, and non-woven (screen) support layers folded	Stainless steel wire cloth strands woven in various mesh patterns to form absolute as well as nominal filtration ratings
Precision Filtration String Wound Filter Cartridge 1–100 micron PP Melt-Blown Filter Cartridge 1–100 micron Microporous Folding Filter Cartridge PP: 0.1/0.2/0.45/0.65/0.8/1/2/3/5/10/20/25/30/50/60 micron PTFE: 0.2/0.45 micron Nylon 6: 0.2/0.45/0.65/1 micron PES: 0.1/0.2/0.45/0.65 micron PVDF: 0.2/0.45 micron SS Pleated Filter Element 5–840 micron
Precision Filtration	1–100 micron	1–100 micron	PP: 0.1/0.2/0.45/0.65/0.8/1/2/3/5/10/20/25/30/50/60 micron PTFE: 0.2/0.45 micron Nylon 6: 0.2/0.45/0.65/1 micron PES: 0.1/0.2/0.45/0.65 micron PVDF: 0.2/0.45 micron	5–840 micron
Length String Wound Filter Cartridge 5/10/20/30/40/50 inch PP Melt-Blown Filter Cartridge 5/10/20/30/40/50 inch Microporous Folding Filter Cartridge 5/10/20/30/40 inch SS Pleated Filter Element 10/20/30/40 inch
Length	5/10/20/30/40/50 inch	5/10/20/30/40/50 inch	5/10/20/30/40 inch	10/20/30/40 inch

String Wound Filter Cartridge

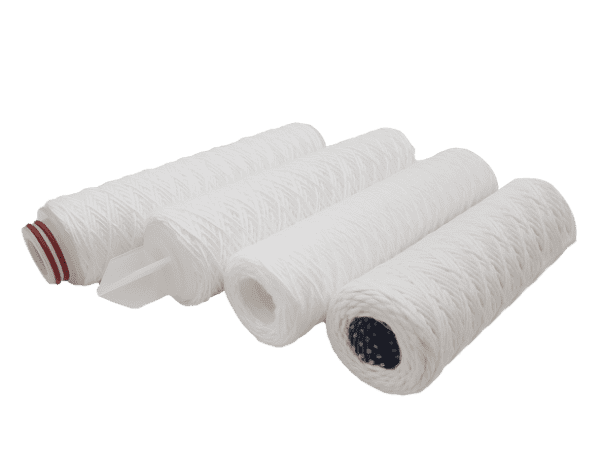

Four string wound water filter cartridge on white background.

Feature	More stable function than PP melt blown filter Low pressure drop, high dirt holding capacity Non-poisonous and odorless Non fiber releasing No secondary pollution Wide chemical compatibility Fits all standard housing
Application	Industrial pre-filtration or RO system Solvent, chemical industry Oil industry Drinking water treatment Electronic and power industry Food and beverage
Outer Diameter	Slim: 60–62 mm Jumbo: 110–115 mm
Inner Diameter	28/30 mm
End Cap	Doe, 222/fin, 222/flat, 226/fin, 226/flat
Style	–
Seal Material	EPDM, Silicone, Viton
Max. Differential Pressure	2 kgf/cm²
Max. Pressure	4 kgf/cm²
Operating Differential Pressure	0.1 kgf/cm²
Max. Operating Temperature	PP with PP core: 60 °C PP with SS core: 100 °C Absorbent cotton with SS core: 120 °C Glass fiber with SS core: 180–300 °C

PP Melt-Blown Filter Cartridge

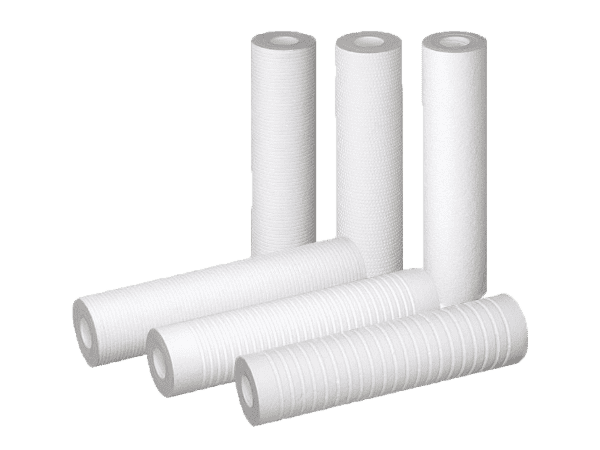

Six PP meltblown water filter cartridge on white background.

Feature	Designed for purification and good for food contact Graded pore structure enhances dirt holding capacity No fiber releasing and media migration Wide chemical compatibility High contaminant holding capacity
Application	Pre-treatment of drinking water system Oil removal industry Food and beverages Pharmacy industry Pre-treatment of industrial DI&RO system Low viscosity fluids
Outer Diameter	60–62 mm
Inner Diameter	28/30 mm
End Cap	222/fin, 226/fin
Style	Groove/light-groove/points/flat
Seal Material	–
Max. Differential Pressure	3 kgf/cm²
Max. Pressure	5 kgf/cm²
Operating Differential Pressure	0.1 kgf/cm²
Max. Operating Temperature	80 °C

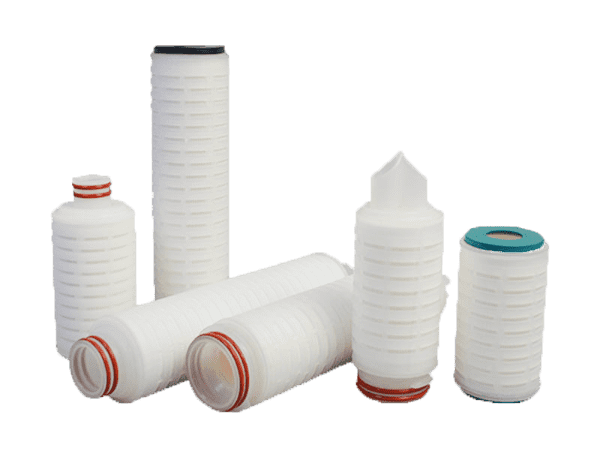

Microporous Folding Filter Cartridge

Feature	Rating from 0.1 to 60 micron, superior to other types Unique low differential pressure High flow volume Wide chemical compatibility Higher dirt holding capacity
Application	RO reverse osmosis water system prefiltration and deionized water system in electronic industry Mineral water, beer and beverage filtration Pharmaceuticals, biologicals, serum products in pharmaceutical industry
Outer Diameter	68 mm
Inner Diameter	28 mm
End Cap	Doe, 222/fin, 222/flat, 226/fin, 226/flat
Style	–
Seal Material	Silicon/EPDM/NBR/Viton/Teflon
Max. Differential Pressure	0.42 MPa at 25 °C
Max. Pressure	–
Operating Differential Pressure	–
Max. Operating Temperature	PP: 88 °C at 0.28 MPa and 60 °C at 0.42 MPa PTFE: 142 °C at 0.276 MPa Nylon 6: 49 °C at 0.21 MPa PES: 140 °C at 0.28 MPa PVDF: 80 °C at 0.173 MPa

SS Pleated Filter Element

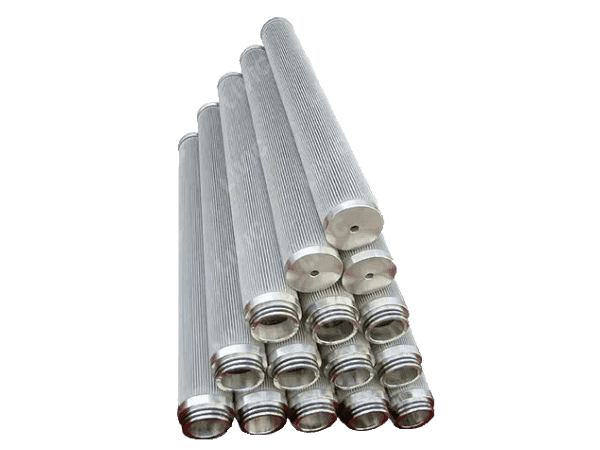

Several stainless steel pleated filter cartridges on white background.

Feature	Low initial pressure drop Reusable after cleaning and regenerating No changes of the pore size and shape in sintering process High thermostability and corrosion resistance Metal fiber felt porosity is much more higher than wire mesh
Application	high temperature, strong solvents and high pressure conditions High-Temperature Applications 500 °F (260 °C) Corrosive Fluid Applications Cleanable Filter Elements (Either by backflushing, ultrasonic or nonabrasive cleaning techniques)
Outer Diameter	–
Inner Diameter	–
End Cap	DOE, 222, 226 or 1" NPT end configurations
Style	–
Seal Material	Buna, Viton or Teflon Seals
Max. Differential Pressure	–
Max. Pressure	–
Operating Differential Pressure	–
Max. Operating Temperature	260 °C
