What types of air dust filter element we supply?

Our air dust filter elements are ideally suited for fine dust applications are available in a variety of medias.

  • Filter cartridge. It is generally used in different models of dust collectors. Cartridge collectors are modular, compact industrial air filtration systems engineered to capture fine dust particulate.
  • Panel Filter. HEPA and 95% DOP industrial air panel filters are used as primary filters in less severe applications or as afterfilters for heavy dust, fume, and mist collection. HEPA filters provide high filtration efficiency of 99.97% on 0.3 microns particles and 95% on 0.3 micron particles for DOP panel filter.
  • Bag filter. Bag Filter is the most commonplace type of air filter. It can deliver high air flow and dust retention capacities in a format requiring little space as the filter is packed for transportation. Filters are available in various executions with filter media and frame alternatives which can be customized to satisfy the operational conditions and requirements in you specific ventilation unit.

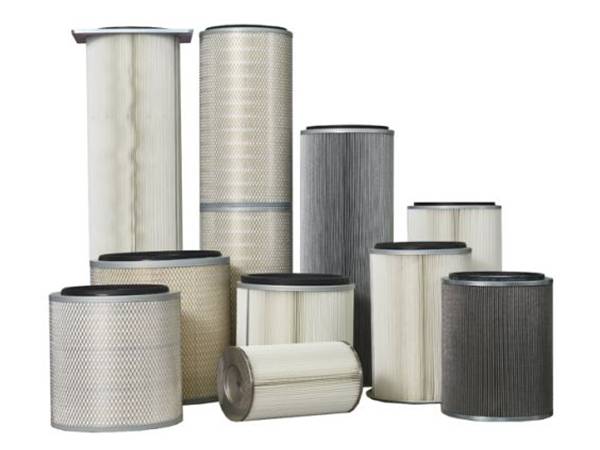

Several air dust filter cartridges and panel filters on white background.

Structures of air dust filter cartridge

  • Top cap. With or without plate design. 8 mm thickness stainless steel or galvanized plates punching. Some are nylon material. The sealing gaskets adopts natural rubber.
  • Bottom cap. Same material with top cap or open end.
  • Filter material. It adopts polyester nonwovens, polyester filament filter paper or glass fibers as filter materials.
  • Inner structure. Support layer adopts expanded metal sheets or perforated metal sheets.
  • Outer construction. With (same with inner construction) or without protective layer.
A detailed structure of air dust filter cartridge

Structure of air dust panel filter

  • Frame. Strong aluminum alloy frame protects whole structure
  • Gasket. Hard-wearing polyurethane or rubber gasket prevents scratches on the frame.
  • Separator. Aluminum corrugated sheet creates uniform flow channels.
  • Filter media. Fiber glass or filter paper supplies high efficient filtration, high dust holding capacity and low resistance.
  • Adhesive. Urethane potting compound for firm attachment.
  • Liner. Optional expanded metal liner supplies reinforced squareness and rigidity.

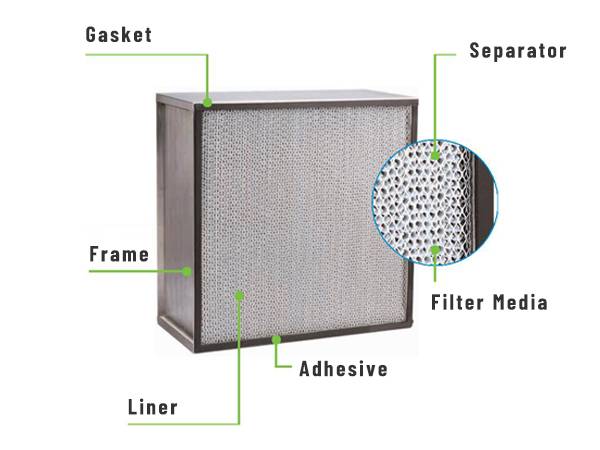

A detailed structure of air dust panel filter.

Where air dust filter elements are used?

Air dust filter elements are widely used in the following processing:

  • Bulk powder processing
  • Laser & plasma cutting
  • Chemicals
  • Blast cleaning booths
  • Welding
  • Foundries
  • Grinding

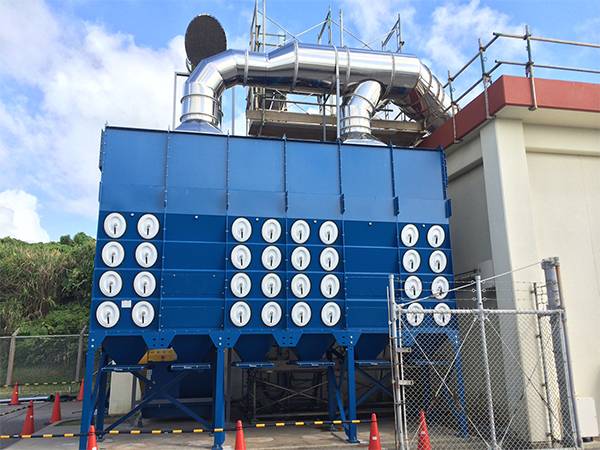

A baghouse air dust collector in the factory
