The Invisible Hero Inside Your Hydraulic System – 99% of Failures Trace Back to It
You never see it. Yet every minute, it endures thousands of brutal attacks. Here’s a hard truth: 80% of unplanned hydraulic breakdowns aren't caused by pumps or valves – but by a filter that failed too soon. And the real kicker? Most filters don't wear out. They're simply chosen wrong.
Three truths no one tells you
1. Beta ratio – an "honest liar". It's measured under steady, lab‑perfect flow. But in real life? One cold start spikes oil viscosity, and your high‑precision filter turns into a solid wall. The bypass valve opens – and contaminants flood straight in.
2. Fatigue resistance – the real dividing line. 80% of filters on the market can't survive 200,000 pulse fatigue cycles. Yet a single workday for an excavator hits over 500,000 pressure pulses.
3. You cannot "clean" a failed filter. Air guns and diesel baths don't clean – they destroy. The internal fiber structure breaks down. Filtration ratio drops from 1000 to 2. You just can't see it.
A real professional filter must survive three battles
- Burst resistance – Cold start differential pressure can hit 30 bar. Cheap filter end caps blow apart.

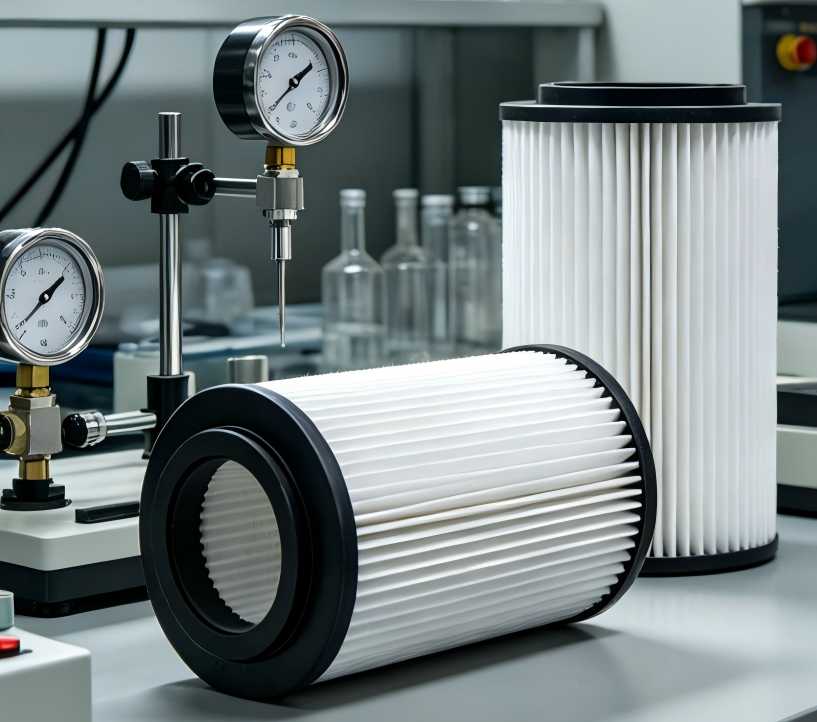

- Fatigue resistance – ISO 3724: 100,000 cycles is the bare minimum. Industrial‑grade needs 500,000+.

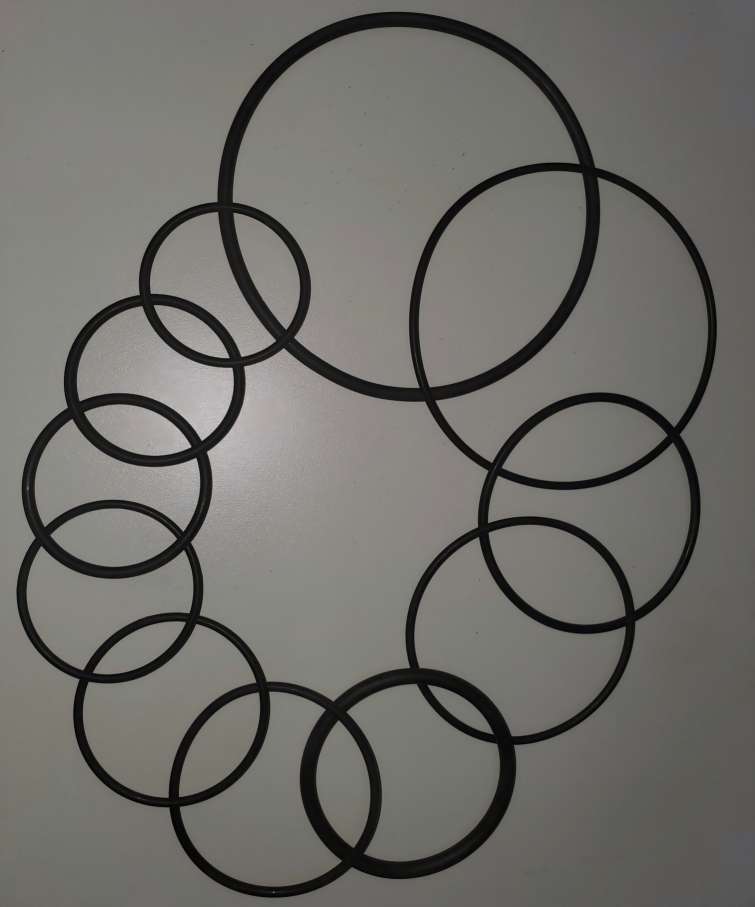

- Chemical compatibility – Hydraulic fluids vary wildly in corrosivity. Pick the wrong seal material – and disaster follows.
A simple self‑check
Next time you pull an old filter, don't just glance at the dirt. Look for:

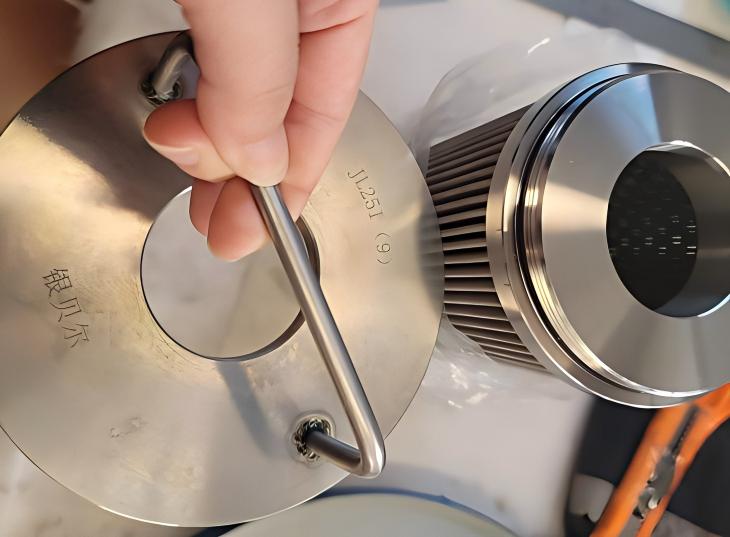

- End cap or core deformation?

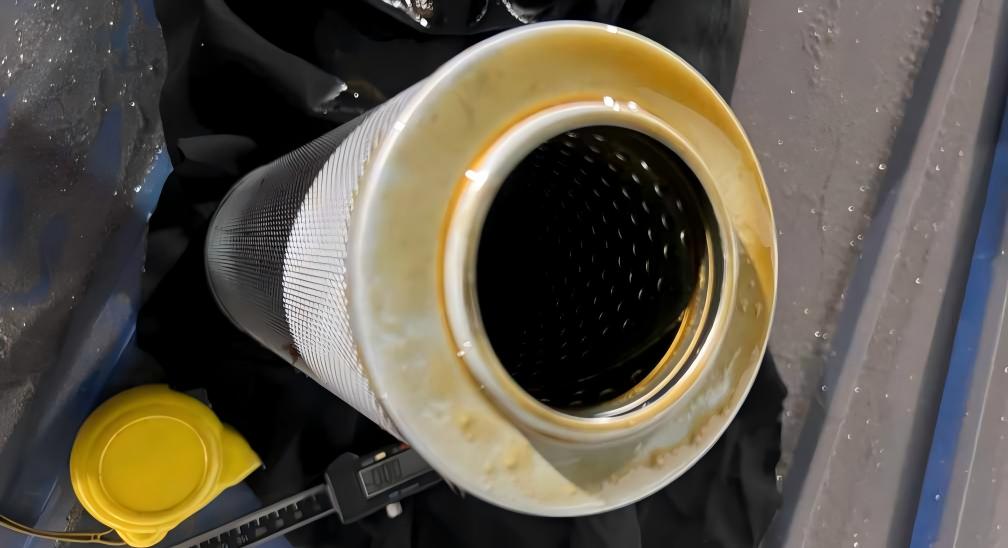

- Pleats collapsed or pinched together?
- Seals hardened or swollen?
If any answer is yes – you weren't using a filter.
You were using something that only looked like one.
Dirty oil won't kill your system.
But the wrong filter will.
- Next time someone says, "A filter just needs to filter" – ask yourself:
Would you trust your entire machine to a tin can that's never passed a pulse test?
